12 April, 2023

Half baked and a half: A small update.

Previously: C0DE517E: Half baked: Dynamic Occlusion Culling

Trying the idea of using the (incrementally accumulated) voxel data to augment the reprojection of the previous depth buffer.

Actually, I use here a depth from five frames ago (storing them in a ring buffer) - to simulate the (really worst-case) delay we would expect from CPU readbacks.

Scene and the final occlusion buffer (quarter res):


Here is the occlusion buffer, generated with different techniques. Top: without median, Bottom: with. Left to right: depth reprojection only, voxel only, both.

Note that the camera was undergoing fast rotation, you can see that the reprojected depth has a large area along the bottom and left edges where there is no information.


Debug views: accumulated voxel data. 256x256x128 (8mb) 8bit voxels, each voxel stores a 2x2x2 binary sub-voxel.


The sub-voxels are rendered only "up close", they are a simple LOD scheme. In practice, we can LOD more, render (splat) only up close and only in areas where the depth reprojection has holes.

Note that my voxel renderer (point splatter) right now is just a brute-force compute shader that iterates over the entire 3d texture (doesn't even try to frustum cull).
Of course that's bad, but it's not useful for me to improve performance, only to test LOD ideas, memory requirements and so on, as the real implementation would need to be on the CPU anyways.

Let's go step by step now, to further illustrate the idea thus far.

Naive Z reprojection (bottom left) and the ring buffer of five quarter-res depth buffers:


Note the three main issues with the depth reprojection:
  1. It cannot cover the entire frame, there is a gap (in this case on the bottom left) where we had no data due to camera movement/rotation.
  2. The point reprojection undersampled in the areas of the frame that get "stretched" - creating small holes (look around the right edge of the image). This is the primary job of the median filter to fix, albeit I suspect that this step can be fast enough that we could also supersample a bit (say, reproject a half-res depth into the quarter res buffer...)
  3. Disocclusion "holes" (see around the poles on the left half of the frame)
After the median filter (2x magnification). On the left, a debug image showing the absolute error compared to the real (end of frame) z-buffer.

The error scale goes from yellow (negative error - false occlusion) to black (no error) to cyan (positive error - false disocclusion. Also, there is a faint yellow dot pattern marking the areas that were not written at all by the reprojection.

Note how all the error right now it "positive" - which is good:


My current hole-filling median algorithm does not fix all the small reprojection gaps, it could be more aggressive, but in practice right now it didn't seem to be a problem.

Now let's start adding in the voxel point splats:


And finally, only in the areas that still are "empty" from either pass, we do a further dilation (this time, a larger filter, starting from 3x3 but going up to 5x5, taking the farthest sample)


We get the entire frame reconstructed, with an error that is surprisingly decent.

A cute trick: it's cheap to use the subvoxel data, when we don't render the 2x2x2, to bias the position of the voxel point. Just a simple lookup[256] to a float3 with the average position of the corresponding full subvoxels for that given encoded byte.

This reasoning could be extended to "supervoxels", 64 bits could and should (data should be in Morton order, which would result in an implicit, full octree) encode 2x2x2 8 bit voxels... then far away we could splat only one point per 64bit supervoxels, and position it with the same bias logic (create an 8bit mask from the 64bits, then use the lookup).




10 April, 2023

From the archive: Notes on GGX parallax correction.

As for all my "series" - this might very well the first and last post about it, we'll see. I have a reasonable trove of solutions on my hard-drive that were either shipped, but never published, not even shipped or were, shipped, "published" but with minimal details, as a side note of bigger presentations. Wouldn't it be a shame if they spoiled?

Warning! All of what I'm going to talk about next probably is not very meaningful if you haven't been implementing parallax-corrected cubemaps before (or rather, recently), but if you did, it will (hopefully) all make sense.
This is not going to be a gentle introduction to the topic, just a dump of some notes...

Preconvoluted specular cubemaps come with all kinds of errors, but in the past decade or so we invented a better technique, where we improve the spatial locality of the cubemap by using a proxy geometry and raycasting.

Typically the proxy geometry is rectangular, and the technique is known as parallax-corrected specular cubemaps. This better technique comes with even more errors built-in, I did a summary of all of the problems here, back in 2015.

From Seb. Lagarde (link above)

The following is an attempt to solve one of the defects parallax correction introduces, by retrofitting some math I did for area lights to see if we can come up with a good solution.

Setup is the following: We have a cubemap specular reflection probe somewhere, and we want to use that to get the specular from a location different from the cube center.
In order to do so, we trace a reflection ray from the surface to be shaded to the scene geometry, represented via some proxies that are easy to intersect, then we look the reflection baked in the probe towards the intersection point.

The problem with this setup is illustrated below. If you think of the specular lobe as projecting its intensity on the surfaces of the scene, you get a given footprint, which will be in general discontinuous (due to visibility) and stretched.

Think of our specular lobe like shining light from a torch on a surface.


Clearly, when we baked the cubemap, we were moving the torch in a given way, from the cubemap center all around. When we query though, we are looking for the lobe that a torch would create on the scene from the shaded point, towards the reflection direction (or well, technically not as a BRDF is not a lobe around the mirror reflection direction but you know that with preconvolved cubemaps we always approximate with "Phong"-like lobes).


By using the cubemap information, we get a given projected kernel which in general doesn't match -at all- the kernel that our specular lobe on the surface projects.
There is no guarantee that they are even closely related, because they can be at different distances, at different angles and "looking" at different scene surfaces (due to discontinuities).

Now, geometry is the worst offender here.

Even if the parallax proxy geometry is not the real scene, and we use proxies that are convex (boxes, k-dops...), naively intersecting planes to get a "corrected" reflection lookup clearly shows in shading at higher roughness, due to discontinuities in the derivatives.

From youtube - note how the reflected corners of the room appear sharp, are not correctly blurred by the rough floor material.

The proxy geometry becomes "visible" in the reflection: as the ray changes plane, it changes the ratio of correction, and the plane discontinuity becomes obvious in the final image.

This is why in practice intersecting boxes is not great, and you'd have to find some smoother proxy geometry or "fade" out the parallax correction at high roughness. To my knowledge, everyone (??) does this "by eye", I'm not aware of a scientific approach, motivated in approximations and errors.

Honestly today I cannot recall what ended up shipping at the time, I think we initially had the idea of "fading" the parallax correction, then I added a weighting scheme to "blend" the intersection (ray parameter) between planes, and I also "pushed away" the parallax planes if we are too near them.

In theory you could intersect something like a rounded box primitive, control the rounding with the roughness parameter, and reason about Jacobians (derivatives, continuity of the resulting filtering kernel, distortion...) but that sounds expensive and harder to generalize to k-dops.

The second worst "offender" with parallax correction is the difference in shape of the specular lobes, the precomputed one versus the "ideal" one we want to reconstruct, that happens even when both are projected on the same plane (i.e. in absence of visibility discontinuities).

The simplest correction to make is in the case where the two lobes are both perpendicular to a surface, the only difference being the distance to it.

This is relatively easy as increasing the distance looks close enough to increasing the roughness. Not exactly the same, but close enough to fit a simple correction formula that tweaks the roughness we fetch from the cubemap based on the ratio between the cubemap-to-intersection distance and the surface-to-intersection one:


From this observation we know we can use numerical fitting and precomputation to find a correction factor from one model to another.
Then, we can take that fitted data and either using a lookup for the conversion or we can find an analytic function that approximates it.

This methodology is what I described at Siggraph 2015 and have used many times since. Formulate an hypothesis: this can be approximated with that. Use brute force to optimize free parameters. Visualize the fitting and end results versus ground truth to understand if the process worked or if not, why not (where are the errors). Rinse and repeat.

Here you can see the first step. For every roughness (alpha) and distance, I fit a GGX D lobe with a new alpha', here adding a multiplicative scaling factor and an additive offset (subtractive, really, as the fitting will show).


Why we use an additive offset? Well, it helps with the fitting, and it should be clear why, if we look at the previous grid. GGX at high roughness has long tail that turns "omnidirectional", whilst a low roughness lobe that is shining far away from a plane does not exhibit that omnidirectional factor.


We cannot use it though, we employ only to help the fitting process find a good match. Why? Well, first, because we can't express it with a single fetch in a preconvolved cubemap mip hierarchy (we can only change the preconvolved lobe by a multiplicative factor), but also note that it is non-zero only in the area where the roughness maxes out (we cannot get rougher than alpha=1), and in that area there is nothing really that we can do.

Of course, next we'd want to find an analytic approximation, but also make sure everything is done in whatever exact association there is from cubemap mip level to alpha, ending up with a function that goes from GGX mip selection to adjusted GGX mip selection (given the distance).
This is really engine-dependent, and left as an exercise to the reader (in all honesty, I don't even have the final formulas/code anymore)

Next up is to consider the case where the cubemap and the surface are not perpendicular to the intersection plane (even keeping that to be just a plane, so again, no discontinuities). Can we account for that as well?

To illustrate the problem, the following shows the absolute value of the cosine of the angle of the intersection between the reflection direction and the proxy planes in a scene.


This is much harder to fit a correction factor for. The problem is that the two different directions (the precomputed one and the actual one) can be quite different.
Same distance, one kernel hits at polar angle Pi/3,0, the second -Pi/3,Pi/3. How do you adjust the mip (roughness) to make one match the other?


One possible idea is to consider how different is the intersection at an angle and the corresponding perpendicular one.
If we have a function that goes from angle,distance -> an isotropic, perpendicular kernel (roughness', angle=0, same distance) then we could maybe go from the real footprint we need for specular to an isotropic footprint, and from the real footprints that we have in the cubemap mips to the isotropic and search for the closest match between the two isotropic projections.

The problem here is that really, with a single fetch/isotropic kernel, it doesn't seem that there a lot to gain by changing the roughness as function of the angle.

In the following, I grapth projections at an angle compared to perpendicular lobe (GGX D term only).
All graphs are with alpha = 0.1, distance = plane size (so it's equivalent to the kernel at the center of a prefiltered cubemap when you ignore the slant).

Pi/6 - the two lobes seem "visually" very close:


At Pi/2.5 we get a very long "tail" but note that the width of the central part of the kernel seems still to fit the isotropic fetch without any change of roughness.


Now here "seems to fit" really doesn't mean much. What we should do is to look at rendered results, compare to ground truth / best effort (i.e. using sampling instead of prefiltering, whilst still using the assumption of representing radiance with the baked, localized cubemap), and if we want to then use numerical methods, do so with an error measure based on some perceptual metric.

And this is what I did, but failed to find any reasonable correction, keeping the limitation of a single fetch. The only hope is to turn to multiple fetches, and optimize the preconvolution specifically to bake data that is useful for the reconstruction, not using a GGX prefiltering necessarily.

I suspect that actually the long anisotropic tail created by the BRDF specular lobe is not, visually, an huge issue.
The problem that what we get is (also) the opposite, from the point of view of the reconstruction, we get tails "baked" into the prefiltered cube at arbitrary angles (compared to the angles we need for specular on surfaces), and these long tails create artifacts.

To account for that, the prefiltering step should probably take directly into account the proxy geometry shape. I.e. if these observations are correct, they point towards the idea that parallax-corrected cubemaps should be filtered by a fixed distance (relative to projected texel size), perpendicular to the proxy plane kernel.

That way when we query the cubemap we have only to convert the projected specular kernel to a kernel perpendicular to the surface (which would be ~ the same kernel we get at that roughness and same distance, just perpendicular), and then look in the mip chain the roughness that gives us a similar prefiltered image, by doing a distance-ratio-to-roughness adjustment as described in the first part of this text.



15 March, 2023

Half baked: Dynamic Occlusion Culling

The following doesn't work (yet), but I wanted to write something down both to put it to rest for now, as I prepare for GDC, and perhaps to show the application of some of the ideas I recently wrote about here.

A bit of context. Occlusion culling (visibility determination) per se is far from a solved problem in any setting, but for us (Roblox) it poses a few extra complications:

  1. We don't allow authoring of "technical details" - so no artist-crafted occluders, cells and portals, and the like.
  2. Everything might move - even if we can reasonably guess what is dynamic in a scene, anything can be changed by a LuaU script.
  3. We scale down to very low-power and older devices - albeit this might not necessarily be a hard constraint here, as we could always limit the draw distance on low-end to such degrees that occlusion culling would become less relevant. But it's not ideal, of course.

That said, let's start and find some ideas on how we could solve this problem, by trying to imagine our design landscape and its possible branches.

Image from https://losslandscape.com/gallery/

Real-time "vs" Incremental

I'd say we have a first obvious choice, given the dynamic nature of the world. Either we try to do most of the work in real-time, or we try to incrementally compute and cache some auxiliary data structures, and we'd have then to be prepared to invalidate them when things move.

For the real-time side of things everything (that I can think of) revolves around some form of testing the depth buffer, and the decisions lie in where and when to generate it, and when and where to test it.

Depth could be generated on the GPU and read-back, typically a frame or more late, to be tested on CPU, it could be generated and tested on GPU, if our bottlenecks are not in the command buffer generation (either because we're that fast, or because we're doing GPU-driven rendering), or it could be both generated and tested on CPU, via a software raster. Delving deeper into the details reveals even more choices.

On GPU you could use occlusion queries, predicated rendering, or a "software" implementation (shader) of the same concepts, on CPU you would need to have a heuristic to select a small set of triangles as occluders, make sure the occluders themselves are not occluded by "better" ones and so on.

All of the above, found use in games, so on one hand they are techniques that we know could work, and we could guess the performance implications, upsides, and downsides, and at the same time there is a lot that can still be improved compared to the state of the art... but, improvements at this point probably lie in relatively low-level implementation ideas.

E.g. trying to implement a raster that works "conservatively" in the sense of occlusion culling is still hard (no, it's not the same as conservative triangle rasterization), or trying to write a parallelized raster that still allows doing occlusion tests while updating it, to be able to occlude-the-occluders while rendering them, in the same frame, things of that nature.

As I wanted to explore more things that might reveal "bigger" surprises, I "shelved" this branch...

Let's then switch to thinking about incremental computation and caching.

Caching results or caching data to generate them?

The first thing that comes to mind, honestly, is just to cache the results of our visibility queries. If we had a way to test the visibility of an object, even after the fact, then we could use that to incrementally build a PVS. Divide the world into cells of some sort, maybe divide the cells per viewing direction, and start accumulating the list of invisible objects.

All of this sounds great, and I think the biggest obstacle would be to know when the results are valid. Even offline, computing a PVS from raster visibility is not easy, you are sampling the space (camera positions, angles) and the raster results are not exact themselves, so, you can't know that your data structure is absolutely right, you just trust that you sampled enough that no object was skipped. For an incremental data structure, we'd need to have a notion of "probability" of it being valid.

You can see a pattern here by now, a way of "dividing and conquering" the idea landscape, the more you think about it, the more you find branches and decide which ones to follow, which ones to prune, and which ones to shelve.

Pruning happens either because a branch seems too unlikely to work out, or because it seems obvious enough (perhaps it's already well known or we can guess with low risk) that it does not need to be investigated more deeply (prototyping and so on).

Shelving happens when we think something needs more attention, but we might want to context-switch for a bit to check other areas before sorting out the order of exploration...

So, going a bit further here, I imagined that visibility could be the property of an object - a visibility function over all directions, for each direction the maximum distance at which it would be unoccluded - or the property of the world, i.e. from a given region, what can that region see. The object perspective, even if intriguing, seems a mismatch both in terms of storage and in terms of computation, as it thinks of visibility as a function - which it is, but one that is full of discontinuities that are just hard to encode.

If we think about world, then we can imagine either associating a "validity" score to the PVS cells, associating a probability to the list of visible objects (instead of being binary), or trying to dynamically create cells. We know we could query, after rendering, for a given camera the list of visible objects, so, for an infinitesimal point in 5d space, we can create a perfect PVS. From there we could cast the problem as how to "enlarge" our PVS cells, from infinitesimal points to regions in space.

This to me, seems like a viable idea or at least, one worth exploring in actual algorithms and prototypes. Perhaps there is even some literature about things of this nature I am not aware of. Would be worth some research, so for now, let's shelve it and look elsewhere!

Occluders

Caching results can be also thought of as caching visibility, so the immediate reaction would be to think in terms of occluder generation as the other side of the branch... but it's not necessarily true. In general, in a visibility data structure, we can encode the occluded space, or the opposite, the open space.

We know of a popular technique for the latter, portals, and we can imagine these could be generated with minimal user intervention, as Umbra 3 introduced many years ago the idea of deriving them through scene voxelization.

Introduction to Occlusion Culling | by Umbra 3D | Medium

It's realistic to imagine that the process could be made incremental, realistic enough that we will shelve this idea as well...

Thinking about occluders seem also a bit more natural for an incremental algorithm, not a big difference, but if we think of portals, they make sense when most of the scene is occluded (e.g. indoors), as we are starting with no information, we are in the opposite situation, where at first the entire scene is disoccluded, and progressively might start discovering occlusion, but hardly "in the amount" that would make most natural sense to encode with something like portals. There might be other options there, it's definitely not a dead branch, but it feels unlikely enough that we might want to prune it.

Here, is where I started going from "pen and paper" reasoning to some prototypes. I still think the PVS idea that we "shelved" might get here as well, but I chose to get to the next level on occluder generation for now.

From here on the process is still the same, but of course writing code takes more time than rambling about ideas, so we will stay a bit longer on one path before considering switching.

When prototyping I want to think of what the real risks and open questions are, and from there find the shortest path to an answer, hopefully via a proxy. I don't need at all to write code that implements the way I think the idea will work out if I don't need to - a prototype is not a bad/slow/ugly version of the final product, it can be an entirely different thing from which we can nonetheless answer the questions we have.

With this in mind, let's proceed. What are occluders? A simplified version of the scene, that guarantees (or at least tries) to be "inside" the real geometry, i.e. to never occlude surfaces that the real scene would not have occluded.

Obviously, we need a simplified representation, because otherwise solving visibility would be identical to rendering, minus shading, in other words, way too expensive. Also obvious that the guarantee we seek cannot hold in general in a view-independent way, i.e. there's no way to compute a set of simplified occluders for a polygon soup from any point of view, because polygon soups do not have well-defined inside/outside regions.

So, we need to simplify the scene, and either accept some errors or accept that the simplification is view-dependent.  How? Let's talk about spaces and data structures. As we are working on geometry, the first instinct would be to somehow do computation on the meshes themselves, in object and world space.

It is also something that I would try to avoid, pruning that entire branch of reasoning, because geometric algorithms are among the hardest things known to mankind, and I personally try to avoid writing them as much as I can. I also don't have much hope for them to be able to scale as the scene complexity increases, to be robust, and so on (albeit I have to say, wizards at Roblox working on our real-time CSG systems have cracked many of these problems, but I'm not them).

World-space versus screen-space makes sense to consider. For data structures, I can imagine point clouds and voxels of some sort to be attractive.

First prototype: Screen-space depth reprojection

Took a looong and winding road to get here, but this is one of the most obvious ideas as CryEngine 3 showed it to be working more than ten years ago.

Secrets of CryEngine 3

I don't want to miscredit this, but I think it was Anton Kaplanyan's work (if I'm wrong let me know and I'll edit), and back then it was dubbed "coverage buffer", albeit I'd discourage the use of the word as it already had a different meaning (the c-buffer is a simpler version of the span-buffer, a way to accelerate software rasterization by avoiding to store a depth value per pixel).

They simply took the scene depth after rendering, downsampled it, and reprojected - by point splatting - from the viewpoint of the next frame's camera. This creates holes, due to disocclusion, due to lack of information at the edges of the frame, and due to gaps between points. CryEngine solved the latter by running a dilation filter, able to eliminate pixel-sized holes, while just accepting that many draws will be false positive due to the other holes - thus not having the best possible performance, but still rendering a correct frame.

Holes, in red, due to disocclusions and frame edges.

This is squarely in the realm of real-time solutions though, what are we thinking?

Well, I was wondering if this general idea of having occluders from a camera depthbuffer could be generalized a bit more. First, we could think of generating actual meshes - world-space occluders, from depth-buffer information.

As we said above, these would not be valid from all view directions, but we could associate the generated occluders from a set of views where we think they should hold up.

Second, we could keep things as point clouds and use point splatting, but construct a database from multiple viewpoints so we have more data to render occluder and fill the holes that any single viewpoint would create.

For prototyping, I decided to use Unity, I typically like to mix things up when I write throwaway code, and I know Unity enough that I could see a path to implement things there. I started by capturing the camera depth buffer, downsampling, and producing a screen-aligned quad-mesh I could displace, effectively like a heightfield. This allowed me to write everything via simple shaders, which is handy due to Unity's hot reloading.

Test scene, and a naive "shrink-wrap" mesh generated from a given viewpoint

Clearly, this results in a "shrink-wrap" effect, and the generated mesh will be a terrible occluder from novel viewpoints, so we will want to cut it around discontinuities instead. In the beginning, I thought about doing this by detecting, as I'm downsampling the depth buffer, which tiles can be well approximated by a plane, and which contain "complex" areas that would require multiple planes.

This is a similar reasoning to how hardware depth-buffer compression typically works, but in the end, proved to be silly.

An easier idea is to do an edge-detection pass in screen-space, and then simply observe which tiles contain edges and which do not. For edge detection, I first generated normals from depth (and here I took a digression trying and failing to improve on the state of the art), then did two tests.

A digression...

First, if neighboring pixels are close in 3d space, we consider them connected and do not generate an edge. If they are not close, we do a second test by forming a plane with the center pixel and its normal and looking at the point-to-plane distance. This avoids creating edges connected geometry that just happens to be at a glancing angle (high slope) in the current camera view.

Depth, estimated normals, estimated edge discontinuties.

As I'm working with simple shaders, I employ a simple trick. Each vertex of each quad in my mesh has two UVs, one corresponding to the vertex location - which would sample across texels in the heightmap, and one corresponding to the center of the quad, which would sample a single texel in the heightmap.
In the vertex shader, if a vertex is hitting an "edge" texel when sampling the first UV set, it checks the quad center UV sample as well. If this is still on an edge texel, then the whole quad is part of an edge, and I send the vertex to NaN to kill the triangles. Otherwise, I just use the height from the second sample.

In practice this is overly conservative as it generates large holes, we could instead push the "edge" quads to the farthest depth in the tile, which would hold for many viewpoints, or do something much more sophisticated to actually cut the mesh precisely, instead of relying on just quads. The farthest depth idea is also somewhat related to how small holes are filled in Crytek's algorithm if one squints enough...

What seems interesting, anyhow, is that even with this rudimentary system we can find good, large occluders - and the storage space needed is minimal, we could easily hold hundreds of these small heightfields in memory...

Combining multiple (three) viewpoints

So right now what I think would be possible is:

  • Keep the last depth and reproject plus close small holes from that, ala Crytek.
  • Then try to fill the remaining holes by using data from other viewpoints.
  • For each view we can have a bounding hierarchy by just creating min-max depth mips (a pyramid), so we can test the volumes against the current reprojection buffer. And we need only to "stencil" test, to see how much of a hole we could cover and with what point density.
  • Rinse and repeat until happy...
  • Test visibility the usual way (mip pyramid, software raster of bounding volumes...)
  • Lastly, if the current viewpoint was novel enough (position and look-at direction) compared to the ones already in the database, consider adding its downsampled depth to the persistent database.

As all viewpoints are approximate, it's important not to try to merge them with a conventional depthbuffer approach, but to prioritize first the "best" viewpoint (the previous frame's one), and then use the other stored views only to fill holes, prioritizing views closer to the current camera.

If objects move (that we did not exclude from occluder generation), we can intersect their bounding box with the various camera frustums, and either completely evict these points of view from the database, or go down the bounding hierarchy / min-max pyramid and invalidate only certain texels - so dynamic geometry could also be handled.

The idea of generating actual geometry from depth probably also has some merit, especially for regions with simple occlusion like buildings and so on. The naive quad mesh I'm using for visualization could be simplified after displacement to reduce the number of triangles, and the cuts along the edges could be done precisely, instead of on the tiles.

But it doesn't seem worth the time mostly because we would still have very partial occluders with big "holes" along the cuts, and merging real geometry from multiple points of view seems complex - at that point, we'd rather work in world-space, which brings to...

Second prototype: Voxels

Why all the complications about viewpoints and databases, if in the end, we are working with point sets? Could we store these directly in world-space instead? Maybe in a voxel grid?

Of course, we can! In fact, we could even just voxelize the scene in a separate process, incrementally, generating point clouds, signed distance fields, implicit surfaces, and so on... That's all interesting, but for this particular case, as we're working incrementally anyways, using the depth buffer is a particularly good idea.

Going from depth to voxels is trivial, and we are not even limited to using the main camera depth, we could generate an ad-hoc projection from any view, using a subset of the scene objects, and just keep accumulating points / marking voxels.

Incidentally, working on this made me notice an equivalence that I didn't think of before. Storing a binary voxelization is the same as storing a point cloud if we assume (reasonably) that the point coordinates are integers. A point at a given integer x,y,z is equivalent to marking the voxel at x,y,z as occupied, but more interestingly, when you store points you probably want to compress them, and the obvious way to compress would be to cluster them in grid cells, and store grid-local coordinates at a reduced precision. This is exactly equivalent then again to storing binary voxels in a sparse representation.


It is obvious, but it was important to notice for me because for a while I was thinking of how to store things "smartly", maybe allow for a fixed number of points/surfels/planes per grid and find ways to merge when adding new ones, all possible and fun to think about, but binary is so much easier.

In my compute shader, I am a rebel bit-pack without even InterlockedOR because I always wanted to write code with data races that still converge to the correct result!

As the camera moves (left) the scene voxelization is updated (left)

If needed, one could then take the binary voxel data and compute from it a coarser representation that encodes planes or SDFs, etc! This made me happy enough that even if it would be cute to figure out other representations, they all went into a shelve-mode.

I spent some time thinking about how to efficiently write a sparse binary voxel, or how to render from it in parallel (load balancing the parallel work), how to render front-to-back if needed, all interesting problems but in practice, not worth yet solving. Shelve!

The main problem with a world-space representation is that the error in screenspace is not bounded, obviously. If we get near the points, we see through them, and they will be arbitrarily spaced apart. We can easily use fewer points farther from the camera, but we have a fixed maximum density.

The solution? Will need another blog post, because this is getting long... and here is where I'm at right now anyways!

I see a few options I want to spend more time on:

1) Draw points as "quads" or ellipsoids etc. This can be done efficiently in parallel for arbitrary sizes, it's similar to tile-based GPU particle rendering.


We could even be clever, under the assumption that splats do not overlap much: we can send them to different tiles based on their size - forming a mipmap hierarchy of buckets. In that case, we know that for each bucket there is only a small fixed number of splats that could land. Then, walking per each pixel the hierarchy from the biggest splats/fewer tiles to the smallest, you even get approximate depth sorting!

2) We could do something more elaborate to reconstruct a surface in screen-space / fill holes.

Imperfect Shadow Maps used a push-pull pyramid to fill arbitrary-sized holes for example. In our case though we would need to be more careful to only join points that are supposed to be on the same surface, and not holes that were actually present in the scene...

A related problem would be on how to perform visibility on the point cloud itself, as clearly points father aways will poke in between closest points. That could be addressed with some kind of depth layers or a similar heuristic, allowing a near point to "occlude" a large number of background points, farther than a few voxels from it...
These ideas have some research in the point cloud literature, but none is tailored to occlusion, which has different requirements.

3) We could reconstruct a surface for near voxels, either by producing an actual mesh (which we could cache, and optimize) or by raymarching (gives the advantage of being able to stop at first intersection).

We'd still points at a distance, when we know they would be dense enough for simple dilation filters to work, and switch to the more expensive representation only for voxels that are too close to the camera to be treated as points.

Inspired by MagicaVoxel's binary MC (see here a shadertoy version) - made a hack that could be called "binary sufrace nets". Note that this is at half the resolution of the previous voxel/point clouds images, and still holds up decently.

4) We could hybridize with the previous idea, and use the depth from the last frame as an initial reprojection, while then fetching from the point cloud/voxel representation for hole-filling (we'd still need some way of dealing with variable point density, but it might matter less if it's only for a few holes).

I think this is the most promising direction, it makes caching trivial, while side-stepping the biggest issues with world-space occluders, which is the fact that even a tiny error (say, 1 centimeter) if seen up close enough (in front of your virtual nose) would cause huge mis-occlusions.

If we used the previous screenspace Z as an initial occlusion buffer, and then augment that with the world-space point cloud, we could render the latter with a near plane that is pushed far enough for the approximation error not to be problematic, while still filling the holes that the reprojection would have. Yes, the holes will still miss some occluders, as now we're not using the cache until a given distance, and worst case we could peek behind a wall causing lots of objects to be rendered... but realtime rendering is the art of finding the best compromises...

04 March, 2023

Hidden in plain sight: The mundanity of the Metaverse


Don’t you hate it when words get stolen? Now, we won’t ever have a “web 3”, that version number has been irredeemably coopted by scammers or worse, tech-bros that live a delusion of changing the world with their code, blindly following their ideology without ever trying to connect to the humanity code’s meant to serve.

Well, this is what happened to “the metaverse”. It didn’t help that it never had a solid definition, to begin with (I tried to craft one here), and then the hype train came and EVERYTHING needed to be marketed as either a metaverse or for the metaverse.


The straw that broke this camel's back...

The final nail in the word’s coffin fell down when notoriously, a big social networking company, looking at the data on its userbase and monetization trending down, decided it was the time for a BOLD move, stole the word, and decided to rush all-in making huge investments in all sort of random things that looked metaverse-y, just throwing in the trash the innovator’s dilemma and its solution.

But if I told you that, hidden in plain sight, this idea of the metaverse is actually rather obvious, even mundane, and all you need to do is to sit down and observe what has been going on… with people.

Trends in the gaming industry.

I’m not the best person to wade through the philosophy and psychology of entertainment - how it is fundamentally social, interactive, and important.

And neither I am, even in my field, a historian - so I won’t be presenting an accurate accounting of what happened in the past couple of decades.

I hope the following will be mundane enough that it can be shown even through an imperfect lens, and for familiarity’s sake, I’ll use my own career as one.

I have to warn you: this is going to be boring. All that I’m going to say, is obvious… it’s just that for some reason, I don’t see often all the dots being connected…

Let’s go.

I started working in the videogame industry in the early 2000s. The very tail end of the ps2 era (I never touched that console’s code - the closets I came was to modify some og xbox stuff we were using as we repurposed a rack of old consoles to help certain data bakes), right at the beginning of the 360 one.

box art
My first game (uncredited)

What were we doing? Boxed titles. Local, self-contained experiences. Yes, you could play split screen if you happened to have a friend nearby - and that’s incredibly fun, we are social animals after all…

But all in all, you shipped a title, you pressed discs, people bought discs, inserted them in their console, played on the couch, rinse and repeat.

I did a couple of these, then moved from Italy to Canada, to work for EA, a much bigger company, we’re around the middle of the 360/ps3 era now.

What were we doing? Yeah, you guessed it, multiplayer titles. Single-player was still important, local multiplayer was still important, and we were still pressing discs… but we started to move towards a more connected idea of gaming.

Is Fight Night Champion Good? Revisiting the Boxing Game 10 Years Later
You know I'm still proud of the work on this one...

We would do DLCs, and support the game longer post-shipping; Communities started to grow bigger as you could connect around a game.

The game you got on disc was not that relevant anymore, was just a starting point, necessarily. There is no way to game-design something that will be played, concurrently, by millions of players. They will break your game, find balancing issues, and so on, so really, the game code was made to be infinitely tweakable, in “real-time” by people monitoring the community and making sure it kept being fun and challenging…

Gaming has always been a community, with forums, magazines, TV shows, and such, but you start seeing all of that grow, people staying with a game longer, sequels to be more important, franchises over single titles…

What’s next?

For me, Ps4/Xbox one, Activision, Call of Duty… Where are we going? E-sports, twitch, youtube. A longer and longer tail of content.

Modern Warfare 3 live action trailer brings Hollywood to Call of Duty ┬╗ EFTM
 I do miss the live-action, star-studded fun trailers COD used to make...

We go beyond tweaking the game post-launch, now, really the success of a game is measured in how well you keep providing interesting content, and interesting experiences with that framework you created.

Games as a service, we see the drop in physical game sales, the move to digital distribution - and with it, the boom of indie game making, of the idea that anyone can create and share.

Even big franchises, with their tight control over their IP, are nothing without the community of creators around them. Playstation “share” et al.

Call of duty is not simply the game that ships in a box, it’s a culture, it’s a scene - a persistent entity even way before it was a persistent gaming universe (only recently happening with WarZone).

And then of course, I moved to Roblox, where I am now - and I guess I should have said somewhere, this is all personal - it’s my view of the industry, not connected with my job there and the company’s goals (Dave started from an educational tool, and from there crafted a vision that has always been quite unique, arguably the reason why now it ended up being ahead, clearer etc...).

NoisyButters - YouTube
I like the positivity of NoisyButters

Hopefully, you can see that my point here is more general than what this or that company wants to do...

But again, I moved to Roblox, personally because I liked the idea to be closer to the creative side of the equation, but in general, where are we now?

What’s the new wave of gaming? Fortnite? Minecraft? Among us? Tarkov? Diablo 4? Whatever, you see the trends:

  • Games are social, and encourage socialization, they are communities. Effectively, they are social networks, just as clubhouse, instagram, tiktok…
  • There are user-created universes “around” the games, even when the game does not allow at all UGC.
  • Games live or die based on the supply of content "flowing through" them. They are vehicles for content delivery.
  • The in-game world and real world have continuous crossovers, brands, concerts, events, celebrations…
Why do I play D3? For the transmog fashion of course!
And if you haven't played Fortnite / experienced its immense catalog of skins, you're missing out.

Conclusions.

Yes, all of this has been true in some ways since forever, in a more underground fashion.

MUDs and modding, Ultima Online and Warcraft, ARGs, and LARPing, I know - nothing's new under the sun. But this does not invalidate the idea, it reinforces it, everything that is mainstream today has been underground before...

So, are we surprised that “the metaverse” matters? The idea of crafting the creative space, making a platform for creativity, having the social aspect built-in, to go beyond owning single IPs? To make the youtube of gaming, to merge creation, distribution, and communication? To allow people to create, instead of trying to cope with content demands by having everything in house, in a continuous death march that anyways will never match what communities can imagine?

I have to admit, a lot of ideas I see in this space look incredibly dumb. The equation that the metaverse is AR/VR/XR, that is the holodeck or ready player one, whatever… and look, one day it might even be, in a time horizon that I really don’t care talking about.

Innovation dies where monopolies thrive: why Meta is failing at metaverse |  Cybernews
:/

But today? Today is mundane, it’s an obvious space that does not need to be created, it’s already here, in products and trends, and will only evolve towards more integrated platforms and better products and so on - but it is anything but surprising.

It’s not science fiction, it’s basic humanity wanting to connect and create.

20 February, 2023

How to render it. Ten ideas to solve Computer Graphics problems.

Pre-Ramble.

A decade ago or so, yours truly was a greener but enthusiastic computer engineer, working in production to make videogames look prettier. At a point, I had, in my naivety, an idea for a book about the field, and went* to a great mentor, with it.

* messaged over I think MSN messenger. Could have been Skype, could have been ICQ, but I think it was MSN...

He warned me about the amount of toiling required to write a book, and the meager rewards, so that, coupled with my inherent laziness, was the end of it.

The mentor was a guy called Christer Ericson, who I had the fortune of working for later in life, and among many achievements, is the author of Real-time Collision Detection, still to this date, one of the best technical books I’ve read on any subject.

The idea was to make a book not about specific solutions and technologies, but about conceptual tools that seemed to me at the time to be recurringly useful in my field (game engine development).

He was right then, and I am definitely no less lazy now, so, you won’t get a book, but I thought, having accumulated a bit more experience, it might be interesting to meditate on what I’ve found in my career to be useful when it comes to innovation in real-time rendering.

As we'll be talking about tools for innovation, the following is written assuming the reader has enough familiarity with the field - as such, it's perhaps a bit niche. I'd love if others were to write similar posts about other industries though - we have plenty of tools to generate ideas in creative fields, but I've seen fewer around (computer) science.

The metatechniques.

In no specific order, I’ll try to describe ten meta-ideas, tools for thought if you wish, and provide some notable examples of their application.

  1. Use the right space.
  2. Data representation and its properties.
    • Consider the three main phases of computation.
  3. Compute over time.
  4. Think about the limitations of available data.
    1. Machine learning as an upper limit.
  5. The hierarchy of ground truths.
  6. Use computers to help along the way.
  7. Humans over math.
  8. Find good priors.
  9. Delve deep.
  10. Shortcut via proxies.

A good way to use these when solving a problem is to map out a design space, try to sketch solutions using a combination of different choices in each axis, and really try to imagine if it would work (i.e. on pen and paper, not going deep into implementation).

Then, from this catalog of possibilities, select a few that are worth refining with some quick experiments, and so on and so forth, keep narrowing down while going deeper.

Related post: Design optimization landscape

1) Use the right space.

Computer graphics problems can literally be solved from different perspectives, and each offers, typically, different tradeoffs.

Should I work in screen-space? Then I might have an easier time decoupling from scene complexity, and I will most likely work only on what’s visible, but that’s also the main downside (e.g. having to handle disocclusions and not being able to know what’s not in view). Should I work in world-space? In object-space? In “texture”-space, i.e. over a parametrization of the surfaces?

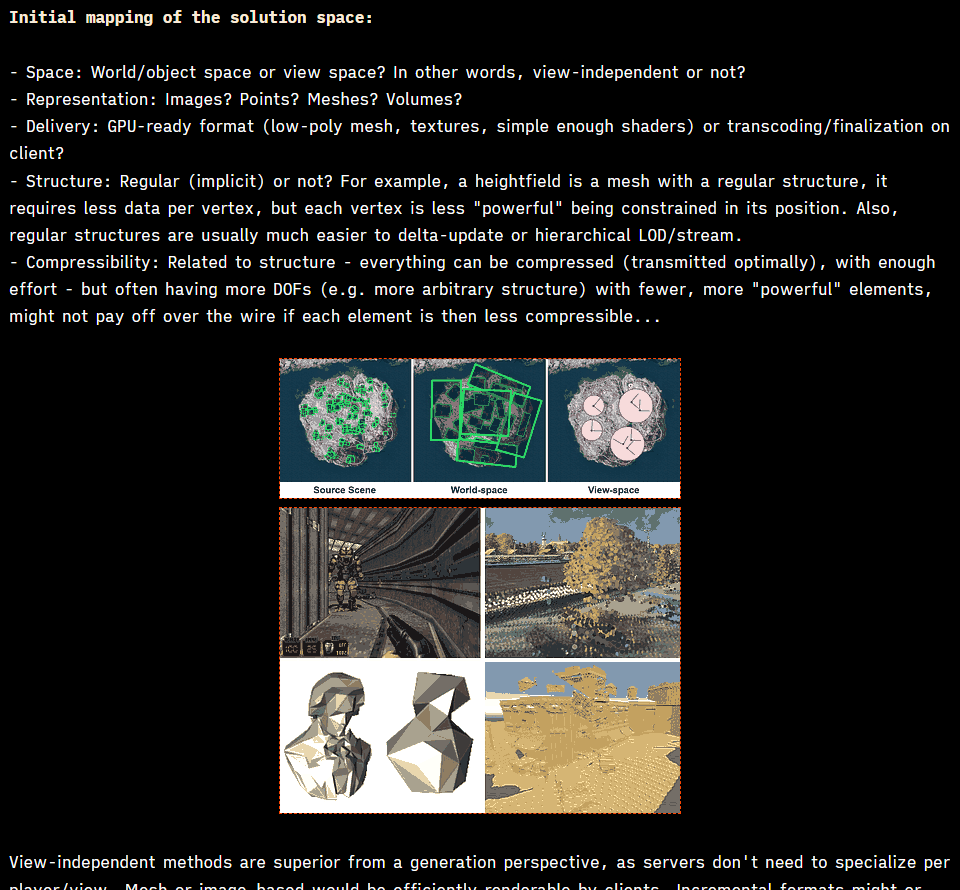

Examples:

2) Data representation and its properties.

This is a fundamental principle of computer science; different data structures have fundamentally different properties in terms of which operations they allow to be performed efficiently.

And even if that’s such an obvious point, do you think systematically about it when exploring a problem in real-time rendering?

List all the options and the relative properties. We might be working on signals on a hemisphere, what do we use? Spherical Harmonics? Spherical Gaussians? LTCs? A hemicube? Or we could map from the hemisphere to a circle, and from a circle to a square, to derive a two-dimensional parametrization, and so on.

Voxels or froxels? Vertices or textures? Meshes or point clouds? For any given problem, you can list probably at least a handful of fundamentally different data structures worth investigating.

2B) Consider the three main phases of computation.

Typically, real-time rendering computation is divided into three: scene encoding, solver, and real-time retrieval. Ideally, we use the same data structure for all three, but it might be perfectly fine to consider different encodings for each.

For example, let’s consider global illumination. We could voxelize the scene, then scatter light by walking the voxel data structure, say, employing voxel cone tracing, and finally utilize the data during rendering by directly sampling the voxels. We can even do everything in the same space, using world-space would be the most obvious choice, starting from using a compute 3D voxelizer over the scene. That would be fine.

But nobody prohibits us to use different data structures in each step, and the end results might be faster. For example, we might want to take our screen-space depth and lift that to a world-space voxel data structure. We could (just spitballing here, not to mean it’s a good idea) generate probes with a voxel render, to approximate scattering. And finally, we could avoid sampling probes in real-time, by say, incrementally generating lightmaps (again, don’t take this as a serious idea).

Imperfect Shadow Maps are a neat example of thinking outside the box in terms of spaces and data structure to solve a problem...

3) Compute over time.

This is a simple universal strategy to convert computationally hard problems into something amenable to real-time. Just don’t try to solve anything in a single frame, if it can be done over time, it probably should.

Incremental computation is powerful in many different ways. It exploits the fact that typically, a small percentage of the total data we have to deal with is in the working set.

This is powerful because it is a universal truth of computing, not strictly a rendering idea (think about memory hierarchies, caches, and the cost of moving data around).

Furthermore, it’s perceptually sound. Motion grabs our attention, and our vision system deals with deltas and gradients. So, we can get by with a less perfect solution if it is “hidden” by a bigger change.

Lastly, it is efficient computationally, because we deal with a very strict frame budget (we want to avoid jitter in the framerate) but an uneven computational load (not all frames take the same time). Incremental computation allows us to “fill” gaps in frames that are faster to compute, while still allowing us to end in time if a frame is more complex, by only adding lag to the given incremental algorithm. Thus, we can always utilize our computational resources fully.

Obviously, TAA, but examples here are too numerous to give, it’s probably simpler to note how modern engines look like an abstract mess if one forces all the incremental algorithms to not re-use temporal information. It’s everywhere

Parts of Cyberpunk 2077's specular lighting, without temporal

It’s worth noting also that here I’m not just thinking of temporal reprojection, but all techniques that cache data over time, that update data over multiple frames, and that effectively result in different aspects of the rendering of a frame to operate at entirely decoupled frequencies.

Take modern shadowmaps. Cascades are linked to the view-space frustum, but we might divide them into tiles and cache over frames. Many games then throttle sun movements to happen mostly during camera motion, to hide recomputation artifacts. We might update far cascades at different frequencies than close ones and entirely bail out of updating tiles if we’re over a given frame budget. Finally, we might do shadowmap filtering using stochastic algorithms that are amortized among frames using reprojection.

4) Think about the limitations of available data.

We made some choices, in the previous steps, now it’s time to forecast what results we could get.

This is important in both directions, sometimes we underestimate what’s possible with the data that we can realistically compute in a real-time setting, other times we can “prove” that fundamentally we don’t have enough/the right data, and we need a perspective change.

A good tool to think about this is to try a brute-force solution over our data structures, even if it wouldn’t be feasible in real-time, it would provide a sort of ground truth (more on this later): what’s the absolute best we could do with the data we have.

Some examples, from my personal experience.

  • When Crysis came out I was working at a company called Milestone, and I remember Riccardo Minervino, one of our technical artists, dumping the textures in the game, from which we “discovered” something that looked like AO, but looked like it was done in screen-space. What sorcery was that, we were puzzled and amazed. It took though less than a day, unconsciously following some of the lines of thought I’m writing about now, for me to guess that it must have been done with the depth buffer, and from there, that one could try to “simply” raytrace the depth buffer, taking inspiration from relief mapping.
  • This ended up not being the actual technique used by Crytek (raymarching is way too slow), but it was even back in the day an example of “best that can be done with the data available” - and when Jorge and I were working on GTAO, one thing that we had as a reference was a raymarched AO that Jorge wrote using only the depth data.
  • Similarly, I’ve used this technique a lot when thinking of other screen-space techniques, because these have obvious limitations in terms of available data. Depth-of-field and motion-blur are an example, where even if I never wrote an actual brute-force-with-limited-information solution, I keep that in the back of my mind. I know that the “best” solution would be to scatter (e.g. the DOF particles approach, first seen in Lost Planet, which FWIW on compute nowadays could be more sane), I know that’s too slow (at least, it was when I was doing these things) and that I had to “gather” instead, but to understand the correctness of the gather, you can think of what you’re missing (if anything) comparing to the more correct, but slower, solution.

4B) Machine learning as an upper limit.

The only caveat here is that in many cases the true “best possible” solution goes beyond algorithmic brute force, and instead couples that with some inference. I.e. we don’t have the data we’d like, but can we “guess”? That guessing is the realm of heuristics.

Lately, the ubiquity of ML opened up an interesting option: to use machine learning as a proxy to validate the “goodness” of data.

For example, in SSAO a typical artifact we get is dark silhouettes around characters, as depth discontinuities are equivalent to long “walls” when interpreting the depth buffer naively (i.e. as a heightfield). But we know that’s bad, and any competent SSAO (or SSR, etc) employs some heuristic to assign some “thickness” to the data in the depth buffer (at least, virtually) to allow rays to pass behind certain objects. That heuristic is a guessing game, how do we know how well we could do? There, training a ML model with ground truth, raytraced AO, and feeding it only the depth-buffer as inputs, can give us an idea of the best we could ever do, even if we are not going to deploy the ML model in real-time, at all.

See also: Deep G-Buffers for GI but remember, here I'm specifically talking about ML as proof of feasibility, not as the final technique to deploy.

5) The hierarchy of ground truths.

The beauty of rendering is that we can pretty much express all our problems in a single equation, we all know it, Kajiya’s Rendering Equation.

From there on, everything is really about making the solution practical, that’s all there is to our job. But we should never forget that the “impractical” solution is great for reference, to understand where our errors are, and to bound the limits of what can be done.

But what is the “true” ground truth? In practice, we should think of a hierarchy.

At the top, well, there is reality itself, that we can probe with cameras and other means of acquisition. Then, we start layering assumptions and models, even the almighty Rendering Equation already makes many, e.g. we operate under the model of geometrical optics, which has its own assumptions, and even there we don’t take the “full” model, we typically narrow it further down: we discard spectral dependencies, we simplify scattering models and so on.

At the very least, we typically have four levels. First, it’s reality.

Second, is the outermost theoretical model, this is a problem-independent one we just assume for rendering in general, i.e. the flavor of rendering equation, scene representation, material modeling, color spaces, etc we work in.

Then, there is often a further model that we assume true for the specific problem at hand, say, we are Ambient Occlusion, that entire notion of AO being “a thing” is its own simplification of the rendering equation, and certain quality issues stem simply from having made that assumption.

Lastly, there is all that we talked about in the previous point, namely, a further assumption that we can only work with a given subset of data.

Often innovation comes by noticing that some of the assumptions we made along the way were wrong, we simply were ignoring parts of reality that we should not have, that make a perceptual difference.

What good is it to find a super accurate solution to say, the integral of spherical diffuse lights with Phong shading, if these lights and that shading never exist in the real world? It’s sobering to look back at how often we made these mistakes (and our artists complained that they could not work well with the provided math, and needed more controls, only for us to notice that fundamentally, the model was wrong - point lights anybody?)

Other times, the ground truth is useful only to understand our mistakes, to validate our code, or as a basis for prototyping.

6) Use computers to help along the way.

No, I’m not talking about ChatGPT here.

Numerical optimization, dimensionality reduction, data visualization - in general, we can couple analytic techniques with data exploration, sometimes with surprising results.

The first, more obvious observation, is that in general, we know our problems are not solvable in closed form, we know this directly from the rendering equation, this is all theory that should be so ingrained I won’t repeat it, our integral is recursive, its form even has a name, we know we can’t solve it, we know we can employ numerical techniques and blah blah blah path tracing.

This is not very interesting per se, as we never directly deal with Kajiya’s in real-time, we layer assumptions that make our problem simpler, and we divide it into a myriad of sub-problems, and many of these do indeed have closed-form solutions.

But even in these cases, we might want to further approximate, for performance. Or we might notice that an approximate solution (as in function approximation or look-up tables) with a better model is superior to an exact solution with a more stringent one.

But there is a second layer where computers help, which is to inform our exploration of the problem domain. Working with data, and interacting with it, aids discovery.

We might visualize a signal and notice it resembles a known function (or that by applying a given transform we improve the visualization) - leading to deductions about the nature of the problem, sometimes that we can reconduct directly to analytic or geometric insights. We might observe that certain variables are not strongly correlated with a given outcome, again, allowing us to understand what matters. Or we might do dimensionality reduction, clustering, and understand that there might be different sub-problems that are worth separating.

To the extreme, we can employ symbolic regression, to try to use brute force computer exploration and have it "tell us" directly what it found.

Examples. This is more about methodology, and I can't know how much other researchers leverage the same methods, but in the years I've written multiple times about these themes:


  • Some horrible old tools I wrote to connect live programs to data vis

7) Humans over math.

One of the biggest sins of computer engineering in general is not thinking about people, processes, and products. It's the reason why tech fails, companies fail, and careers "fail"... and it definitely extends to research as well, especially if you want to see it applied.

In computer graphics, this manifests in two main issues. First, there is the simple case of forgetting about perceptual error measures. This is a capital sin both in papers (technique X is better by Y by this % MSE) and data-driven results (visualization, approximation...).

The most obvious issue is to just use mean squared error (a.k.a. L2) everywhere, but often times things can be a bit trickier, as we might seek to improve a specific element in a processing chain that delivers pixels to our faces, and we too often just measure errors in that element alone, discounting the rest of the pipeline which would induce obvious nonlinearities.

In these cases, sometimes we can just measure the error at the end of the pipeline (e.g. on test scenes), and other times we can approximate/mock the parts we don't explicitly consider.

As an example, if we are approximating a given integral of a luminaire with a set BRDF model, we should probably consider that the results would go through a tone mapper, and if we don't want to use a specific one (which might not be wise, especially because that would probably depend on the exposure), we can at least account for the roughly logarithmic nature of human vision...

Note that a variant of this issue is to use the wrong dataset when computing errors or optimizing, for example, one might test a new GPU texture compression method over natural image datasets, while the important use case might be source textures, that have significantly different statistics. All these are subtle mistakes that can cause large errors (and thus, also, the ability to innovate by fixing them...)

The second category of sins is to forget whose life we are trying to improve - namely, the artist's and the end user's. Is a piece of better math useful at all, if nobody can see it? Are you overthinking PBR, or focusing on the wrong parts of the imagining pipeline? What matters for image quality?

In most cases, the answer would be "the ability of artists to iterate" - and that is something very specific to a given product and production pipeline.

If you can spend more time with artists, as a computer graphics engineer, you should.

Nowadays unfortunately productions are so large that this tight collaboration is often unfeasible, artists dwarf engineers by orders of magnitude, and thus we often create some tools with few data points, release them "in the wild" of a production process, where they might or might not be used in the ways they were "supposed" to. Even the misuse is very informative.

We should always remember that artists have the best eyes, they are our connection to the end users, to the product, and the ones we should trust. If they see something wrong, it probably is. It is our job to figure out why, where, and how to fix it, all these dimensions are part of the researcher's job, but the hint at what is wrong, comes first from art.

An anecdote I often refer to, because I lived through these days, is when artists had only point lights, and some demanded that lights carried modifiers to the roughness of surfaces they hit. I think this might have even been in the OpenGL fixed function lighting model, but don't quote me there. Well, most of us laughed (and might laugh today, if not paying attention) at the silliness of the request. Only to be humbled by the invention of "roughness modification" as an approximation to area lights...

Here is where I should also mention the idea of taking inspiration from other fields, this is true in general and almost to the same level as suggestions like "take a walk to find solutions" or "talk to other people about the problem you're trying to solve" - i.e. good advice that I didn't feel was specific enough. We know that creativity is the recombination of ideas, and that being a good mix of "deep/vertical" and "wide/horizontal" is important... in life.

But specifically, here I want to mention the importance of looking at our immediate neighbors: know about art, its tools and language, know about offline rendering, movies, and visual effects, as they can often "predict" where we will go, or as we can re-use their old techniques, look at acquisition and scanning techniques, to understand the deeper nature of certain objects, look at photography and movie making.

When we think about inspiration, we sometimes limit ourselves to related fields in computer science, but a lot of it comes from entirely different professions, again, humans.

See also:

8) Find good priors.

A fancy term for assumptions, but here I am specifically thinking of statistics over the inputs of a given problem, not simplifying assumptions over the physics involved. It is often the case in computer graphics that we cannot solve a given problem in general, literally, it is theoretically not solvable. But it can become even easy to solve once we notice that not all inputs are equally likely to be present in natural scenes.

This is the key assumption in most image processing problems, upsampling, denoising, inpainting, de-blurring, and so on. In general, images are made of pixels, and any configuration of pixels is an image. But out of this gigantic space (width x height x color channels = dimensions), only a small set comprises images that make any sense at all, most of the space is occupied, literally, by random crap.

If we have some assumption over what configurations of pixels are more likely, then we can solve problems. For example, in general upsampling has no solution, downsampling is a lossy process, and there is no reason for us to prefer a given upsampled version to another where both would generate the same downsampled results... until we assume a prior. By hand and logic, we can prioritize edges in an image, or gradients, and from there we get all the edge-aware upsampling algorithms we know (or might google). If we can assume more, say, that the images are about faces or text and so on, we can create truly miraculous (hallucination) techniques.

As an aside, specifically for images, this is why deep learning is so powerful - we know that there is a tiny subspace of all possible random pixels that are part of naturally occurring images, but we have a hard time expressing that space by handcrafted rules. So, machine learning comes to the rescue.

This idea though applies to many other domains, not just images. Convolutions are everywhere, sparse signals are everywhere, and noise is everywhere, all these domains can benefit from adopting priors.

E.g. we might know about radiance in parts of the scene only through some diffuse irradiance probes (e.g. spherical harmonics). Can we hallucinate something for specular lighting? In general, no, in practice, probably. We might assume that lighting is likely to come from a compact set of directions (a single dominant luminaire). Often times is even powerful to assume that lighting comes mostly from the top down, in most natural scenes - e.g. bias AO towards the ground...

See also: an old rant on super-resolution ignorance

9) Delve deep.

This is time-consuming and can be annoying, but it is also one of the reasons why it's a powerful technique. Keep asking "why". Most of what we do, and I feel this applies outside computer graphics as well, is habit or worse, hype. And it makes sense for this to be the case, we simply do not have the time to question every choice, check every assumption, and find all the sources when our products and problems keep growing in complexity.

But for a researcher, it is also a land of opportunity. Often times we can even today, pick a topic at random, a piece of our pipeline, and by simply keep questioning it we'll find fundamental flaws that when corrected yield considerable benefits.

This is either because of mistakes (they happen), because of changes in assumptions (i.e. what was true in the sixties when a given piece of math was made, is not true today), because we ignored the assumptions (i.e. the original authors knew a given thing was applicable only in a specific context, but we forgot about it), or because we plugged in a given piece of math/algorithm/technology and added large errors while doing it.

A simple example: most integrals of lighting and BRDFs with normalmaps, which cause the hemisphere of incoming light directions to partially be occluded by the surface geometry. We clearly have to take that horizon occlusion into consideration, but we often do not, or if we do it's through quick hacks that were never validated. Or how we use Cook-Torrance-based BRDFs, without remembering that they are valid only up to a given surface smoothness. Or how nobody really knows what to do with colors (What's the right space for lighting? For albedos? To do computation? We put sRGB primaries over everything and call it a day...). But again, this is everywhere, if one has the patience of delving...

10) Shortcut via proxies.

Lastly, this one is a bit different than all the others, in a way a bit more "meta". It is not a technique to find ideas, but one to accelerate the development process of ideas, and it is about creating mockups and prototypes as often as possible, as cheaply as possible.

We should always think - can I mock this up quickly using some shortcut? Especially where it matters, that's to say, around unknowns and uncertain areas. Can I use an offline path tracer, and create a scene that proves what my intuition is telling me? Perhaps for that specific phenomenon, the most important thing is, I don't know, the accuracy of the specular reflection, or the influence of subsurface scattering, or modeling lights a given way...

Can I prove my ideas in two dimensions? Can I use some other engine that is more amenable to live coding and experimentation? Can I modify a plug-in? Can I create a static scene that previews the performance implication of something that I know will need to generate dynamically - say a terrain system or a vegetation system.

Can I do something with pen and paper? Can I build a physical model? Can I gather data from other games, from photos, from acquiring real-world data... Can I leverage tech artists to create mocks? Can I create artificial loads to investigate the performance, on hardware, of certain choices?

Any way you have to write less code, take less time, and answer a question that allows you to explore the solution space faster, is absolutely a priority when it comes to innovation. Our design space is huge! It's unwise to put prematurely all the chips on a given solution, but it is equally unwise to spend too long exploring wide, so the efficiency of the exploration is paramount, in practice.

- Ending rant.

I hope you enjoyed this. In some ways I realize it's a retrospective that I write now as I've, if not closed, at least paused the part of my career that was mostly about graphics research, to learn about other areas that I have not seen before.

It's almost like these youtube ads where people peddle free pamphlets on ten easy steps to become rich with Amazon etc, minus the scam (trust me...). Knowledge sharing is the best pyramid scheme! The more other people innovate, the more I can (have the people who actually write code these days) copy and paste solutions :)

I also like to note how this list could be called "anti-design patterns" (not anti-patterns, which are still patterns), the opposite of DPs in the sense that I hope for these to be starting points for ideas generation, to apply your minds in a creative process, while DPs (ala GoF) are prescribed (terrible) "solutions" meant to be blindly applied.

I probably should not even mention them because at least in my industry, they are finally effectively dead, after a phase of hype (unfortunately, we are often too mindless in general) - but hey, if I can have one last stab... why not :)
